Building GPT-2 (124M) from Scratch in PyTorch

Introduction

In Part 1, I explained what GPT-2 does at a high level: tokenization, embeddings, attention, and the autoregressive generation loop. Now we're going to build it.

By the end of this article, you'll understand every component of GPT-2, see the math behind each operation, and have working PyTorch code you can run yourself. All the code is available on GitHub.

Here's what we're building:

Prerequisites: Basic PyTorch (tensors, nn.Module, forward/backward), linear algebra basics (matrix multiplication), and Python.

We'll build each piece, then assemble them into the complete model. Let's go.

Token and Positional Embeddings

Token Embeddings

Intuition: Token IDs are arbitrary integers (15496, 995, etc.). Neural networks need continuous values to compute gradients. Solution: a lookup table.

Math:

Code:

import torch.nn as nn

# Token embedding is just nn.Embedding
self.wte = nn.Embedding(vocab_size, n_embd)

# Usage:
tok_emb = self.wte(token_ids)  # (B, T) -> (B, T, n_embd)

nn.Embedding creates a matrix and does row lookup. For GPT-2: 50,257 × 768 = 38.6M parameters.

Positional Embeddings

Intuition: "dog bites man" ≠ "man bites dog". We need to encode position. GPT-2 uses learned (not sinusoidal) positions.

Math:

Code:

self.wpe = nn.Embedding(block_size, n_embd)

# Usage:
positions = torch.arange(T, device=device)  # [0, 1, 2, ..., T-1]
pos_emb = self.wpe(positions)  # (T,) -> (T, n_embd)

For GPT-2: 1,024 × 768 = 786K parameters.

Combining Them

def forward(self, idx):
    B, T = idx.shape
    tok_emb = self.wte(idx)           # (B, T, n_embd)
    pos_emb = self.wpe(torch.arange(T, device=idx.device))  # (T, n_embd)
    x = tok_emb + pos_emb             # (B, T, n_embd) via broadcasting
    return x

Why addition and not concatenation? It keeps the dimension at 768 (instead of doubling it), and empirically works just as well. Broadcasting handles the batch dimension automatically.

Self-Attention: The Core

This is the heart of the transformer. Take your time with this section.

The Problem Attention Solves

Consider: "The cat sat on the mat because it was soft."

When processing "it" (position 7), we need information from "mat" (position 5). Attention lets every position directly look at every other position.

Query, Key, Value

Intuition: Each token plays three roles:

• Query (Q): "What am I looking for?"
• Key (K): "What do I contain?"
• Value (V): "What information do I provide?"

Q and K determine the attention weight; V provides the content.

Math:

We multiply the input X by three different weight matrices to create Query, Key, and Value. Think of it as transforming the same input three different ways, like taking a photo and applying three different filters.

Computing Attention Scores

Step 1: Dot product Q and K

We multiply Query and Key (transposed) to compute how much each token should pay attention to every other token. This creates a matrix of attention scores.

Step 2: Scale by √d_head

Why divide by the square root? This was my biggest "aha" moment. Here's why we need it: Q and K elements have variance ~1 (after proper initialization). The dot product of d-dimensional vectors has variance d, so as d_head increases, the values grow larger. Large values cause softmax to saturate (become too peaked at one value, near-zero everywhere else), which makes gradients vanish and hurts learning. Dividing by √d_head keeps variance at 1, normalizing the scores to a reasonable range so softmax can produce smoother, more balanced attention weights. For GPT-2: d_head = 64, so we divide by 8.

Step 3: Apply causal mask (set future positions to -∞)

Step 4: Softmax (each row sums to 1)

Softmax converts raw scores into probabilities. It makes all values positive and ensures each row sums to 1, so we get a proper probability distribution. The highest scores become the most probable, but nothing gets completely ignored.

Step 5: Weighted sum of values

Finally, we use the attention weights to create a weighted combination of the Value vectors. This is where the "attention" happens: tokens with higher attention weights contribute more to the final output.

The complete formula:

Here's the full attention mechanism in one line. It combines all the steps we just walked through: compute similarity scores between Query and Key, scale them, convert to probabilities with softmax, then use those probabilities to weight the Value vectors.

Causal Masking

Why: Autoregressive models can't see future tokens during training or inference.

How:

# Create mask once
mask = torch.tril(torch.ones(block_size, block_size))

# Apply mask: where mask = 0, set score to -inf
scores = scores.masked_fill(mask[:T, :T] == 0, float('-inf'))

# After softmax: e^(-inf) = 0

Multi-Head Attention

GPT-2 uses 12 heads, each with d_head = 64 (12 × 64 = 768). Each head learns different patterns. Outputs are concatenated, then projected.

Full Attention Code

class CausalSelfAttention(nn.Module):
    def __init__(self, config):
        super().__init__()
        assert config.n_embd % config.n_head == 0

        # Combined Q, K, V projection (more efficient than separate)
        self.c_attn = nn.Linear(config.n_embd, 3 * config.n_embd)
        # Output projection
        self.c_proj = nn.Linear(config.n_embd, config.n_embd)

        self.n_head = config.n_head
        self.n_embd = config.n_embd
        self.head_dim = config.n_embd // config.n_head

        # Causal mask (registered as buffer, not parameter)
        self.register_buffer('bias',
            torch.tril(torch.ones(config.block_size, config.block_size))
            .view(1, 1, config.block_size, config.block_size))

    def forward(self, x):
        B, T, C = x.size()

        # Compute Q, K, V in one matrix multiply
        qkv = self.c_attn(x)  # (B, T, 3*C)
        q, k, v = qkv.split(self.n_embd, dim=2)  # Each: (B, T, C)

        # Reshape for multi-head: (B, n_head, T, head_dim)
        q = q.view(B, T, self.n_head, self.head_dim).transpose(1, 2)
        k = k.view(B, T, self.n_head, self.head_dim).transpose(1, 2)
        v = v.view(B, T, self.n_head, self.head_dim).transpose(1, 2)

        # Attention scores: (B, n_head, T, T)
        att = (q @ k.transpose(-2, -1)) * (1.0 / math.sqrt(self.head_dim))

        # Causal mask
        att = att.masked_fill(self.bias[:, :, :T, :T] == 0, float('-inf'))

        # Softmax
        att = F.softmax(att, dim=-1)

        # Apply to values: (B, n_head, T, head_dim)
        y = att @ v

        # Concatenate heads: (B, T, C)
        y = y.transpose(1, 2).contiguous().view(B, T, C)

        # Output projection
        return self.c_proj(y)

Feed-Forward Network (MLP)

Intuition: Attention gathers information from context. The MLP processes each position independently, "thinking about" what was gathered.

Architecture

• Expand: 768 → 3072 (4× expansion)
• Nonlinearity: GELU
• Contract: 3072 → 768

Why Expand Then Contract?

More "working memory" for computation. Like scratch paper bigger than the final answer. The 4× factor is empirical; it's what worked well.

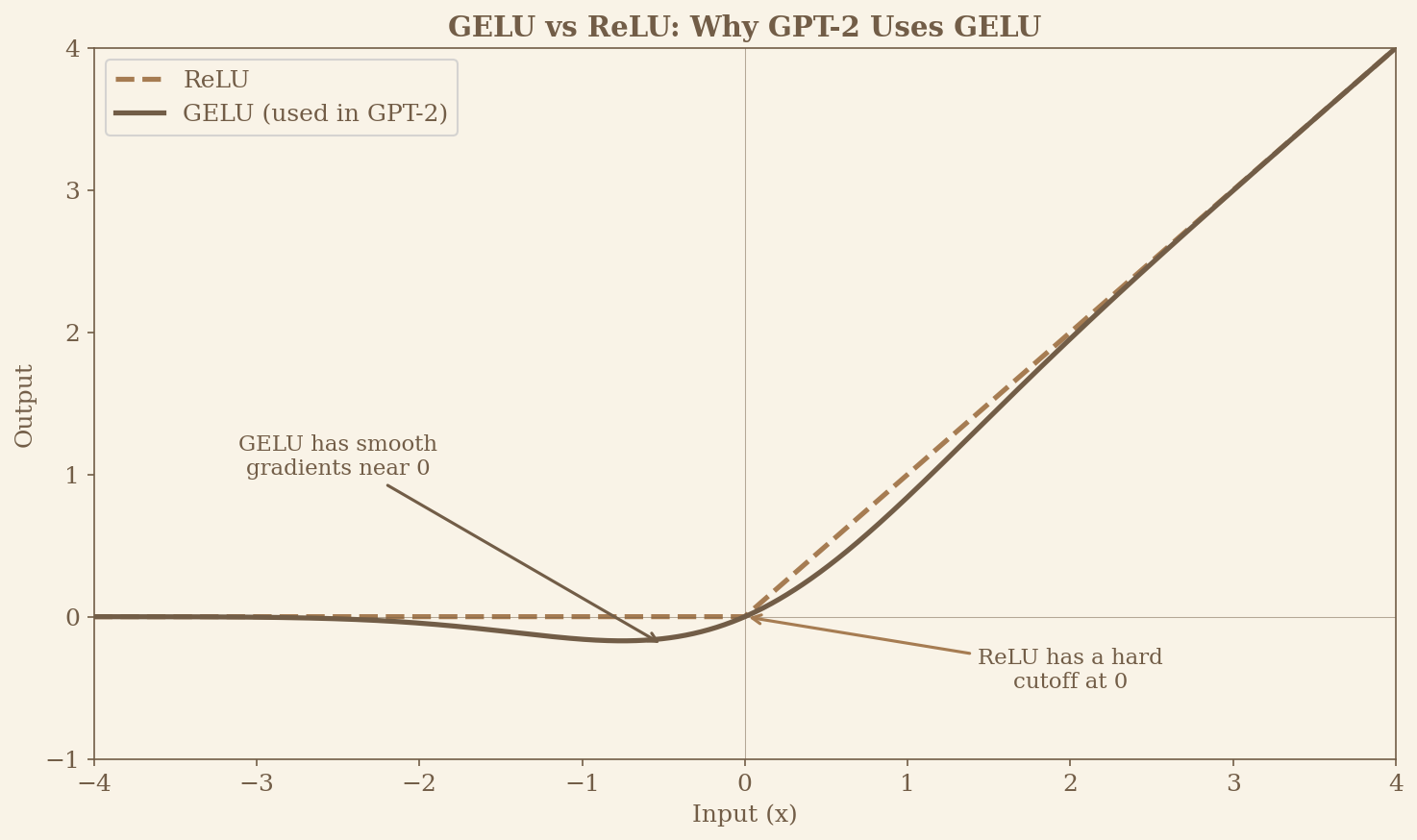

GELU vs ReLU

GELU has smoother transitions and empirically works slightly better for language modeling.

Code

class MLP(nn.Module):
    def __init__(self, config):
        super().__init__()
        self.c_fc = nn.Linear(config.n_embd, 4 * config.n_embd)
        self.gelu = nn.GELU(approximate='tanh')
        self.c_proj = nn.Linear(4 * config.n_embd, config.n_embd)

    def forward(self, x):
        x = self.c_fc(x)      # (B, T, 768) -> (B, T, 3072)
        x = self.gelu(x)
        x = self.c_proj(x)    # (B, T, 3072) -> (B, T, 768)
        return x

Parameter Count

• c_fc: 768 × 3072 = 2.36M
• c_proj: 3072 × 768 = 2.36M
• Total per MLP: ~4.7M
• 12 blocks × 4.7M = 56.6M (45% of the model!)

Transformer Block

Now we combine attention + MLP with residual connections and layer normalization.

Layer Normalization

Normalizes each position to mean 0, variance 1. Learned scale (γ) and shift (β). Stabilizes deep network training.

# PyTorch does this for us
self.ln_1 = nn.LayerNorm(n_embd)

Residual Connections

x = x + sublayer(x)   # Not x = sublayer(x)

Why?

1. Gradient flow: Direct path backward through addition
2. Easier learning: Layer only learns the difference from identity

Pre-LN Architecture (GPT-2 Style)

x = x + attention(layernorm(x))   # Pre-norm
x = x + mlp(layernorm(x))

(vs. Post-norm: x = layernorm(x + attention(x)))

Pre-LN is more stable for deep networks.

Full Block Code

class TransformerBlock(nn.Module):
    def __init__(self, config):
        super().__init__()
        self.ln_1 = nn.LayerNorm(config.n_embd)
        self.attn = CausalSelfAttention(config)
        self.ln_2 = nn.LayerNorm(config.n_embd)
        self.mlp = MLP(config)

    def forward(self, x):
        # Attention with residual
        x = x + self.attn(self.ln_1(x))
        # MLP with residual
        x = x + self.mlp(self.ln_2(x))
        return x

Parameter Count Per Block

12 blocks × 7.08M = ~85M parameters

Full Model Assembly

Architecture Overview

Embeddings (wte + wpe)
    |
Block 1 -> Block 2 -> ... -> Block 12
    |
Final LayerNorm (ln_f)
    |
Output Projection (lm_head)

Weight Tying

self.lm_head.weight = self.transformer.wte.weight

Why? Semantic consistency: if "cat" has embedding v, producing "cat" should mean the hidden state is close to v. Also saves 38.6M parameters!

Full Model Code

class GPT(nn.Module):
    def __init__(self, config):
        super().__init__()
        self.config = config

        self.transformer = nn.ModuleDict(dict(
            wte = nn.Embedding(config.vocab_size, config.n_embd),
            wpe = nn.Embedding(config.block_size, config.n_embd),
            h = nn.ModuleList([TransformerBlock(config)
                               for _ in range(config.n_layer)]),
            ln_f = nn.LayerNorm(config.n_embd),
        ))
        self.lm_head = nn.Linear(config.n_embd, config.vocab_size, bias=False)

        # Weight tying
        self.transformer.wte.weight = self.lm_head.weight

    def forward(self, idx, targets=None):
        B, T = idx.shape

        # Embeddings
        tok_emb = self.transformer.wte(idx)
        pos_emb = self.transformer.wpe(torch.arange(T, device=idx.device))
        x = tok_emb + pos_emb

        # Transformer blocks
        for block in self.transformer.h:
            x = block(x)

        # Final norm and projection
        x = self.transformer.ln_f(x)
        logits = self.lm_head(x)  # (B, T, vocab_size)

        # Loss
        loss = None
        if targets is not None:
            loss = F.cross_entropy(
                logits.view(-1, logits.size(-1)),
                targets.view(-1)
            )

        return logits, loss

Parameter Count Verification

Training

Cross-Entropy Loss

Intuition: How wrong are our predictions?

Examples:

• P("fox") = 0.80 → loss = 0.22 (good)
• P("fox") = 0.15 → loss = 1.90 (bad)

loss = F.cross_entropy(logits.view(-1, vocab_size), targets.view(-1))

AdamW Optimizer

Why not plain SGD?

• Momentum: Smooth out noisy gradients
• Adaptive LR: Different learning rates per parameter
• Weight decay: Prevent weights from growing too large

optimizer = torch.optim.AdamW(
    model.parameters(),
    lr=6e-4,
    betas=(0.9, 0.95),
    weight_decay=0.1
)

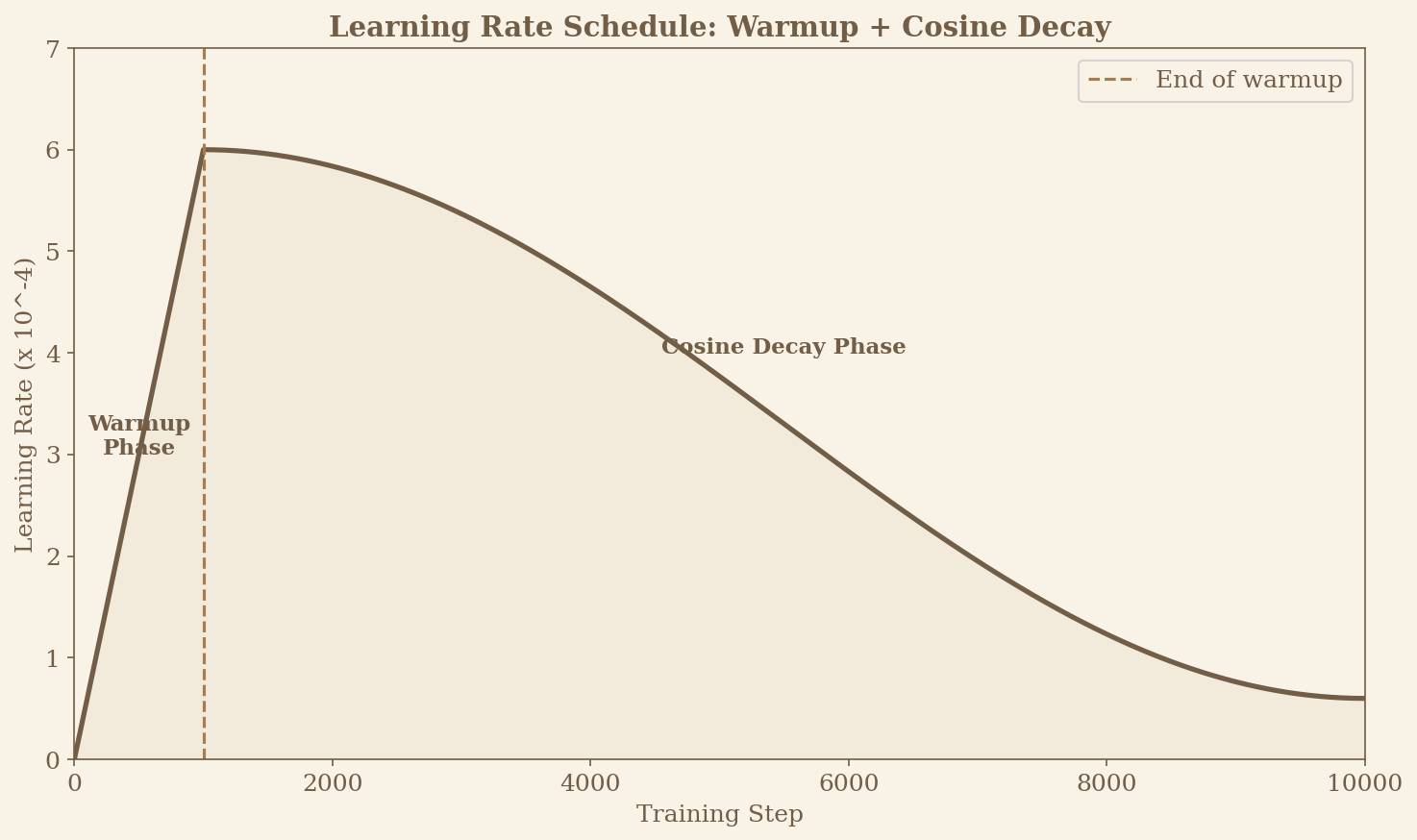

Learning Rate Schedule

Warmup (first ~715 steps): Start at 0, increase linearly to max_lr. Prevents early instability.

Cosine Decay (after warmup): Decrease from max_lr to min_lr (10% of max). Smooth decay helps convergence.

def get_lr(step, warmup_steps=715, max_lr=6e-4, min_lr=6e-5, max_steps=19073):
    if step < warmup_steps:
        return max_lr * step / warmup_steps
    if step > max_steps:
        return min_lr
    progress = (step - warmup_steps) / (max_steps - warmup_steps)
    return min_lr + 0.5 * (max_lr - min_lr) * (1 + math.cos(math.pi * progress))

Gradient Accumulation

Problem: Batch size 512 × 1024 tokens = 524K tokens. Doesn't fit in GPU memory.

Solution: Accumulate gradients over multiple smaller batches.

grad_accum_steps = 32
optimizer.zero_grad()

for micro_step in range(grad_accum_steps):
    x, y = get_batch()
    logits, loss = model(x, y)
    (loss / grad_accum_steps).backward()  # Scale for averaging

optimizer.step()

Gradient Clipping

Why: Prevent exploding gradients.

torch.nn.utils.clip_grad_norm_(model.parameters(), max_norm=1.0)

Text Generation

The Autoregressive Loop

@torch.no_grad()
def generate(model, idx, max_new_tokens, temperature=1.0, top_k=None):
    for _ in range(max_new_tokens):
        # Crop to context length
        idx_cond = idx[:, -model.config.block_size:]

        # Get predictions
        logits, _ = model(idx_cond)
        logits = logits[:, -1, :] / temperature

        # Top-k filtering
        if top_k is not None:
            v, _ = torch.topk(logits, top_k)
            logits[logits < v[:, [-1]]] = float('-inf')

        # Sample
        probs = F.softmax(logits, dim=-1)
        idx_next = torch.multinomial(probs, num_samples=1)

        # Append
        idx = torch.cat([idx, idx_next], dim=1)

    return idx

Sampling Strategies

Temperature intuition: T < 1 = more deterministic, T = 1 = original probs, T > 1 = more random.

Results and Samples

Training Details

• Dataset: Shakespeare (~1MB)
• Steps: 1000
• Hardware: Single GPU

Sample Outputs

Temperature 0.7:

ROMEO:
What say'st thou? Speak again, bright angel, for thou art
As glorious to this night, being o'er my head,
As is a winged messenger of heaven
Unto the white-upturned wondering eyes
Of mortals that fall back to gaze on him...

Temperature 1.0:

ROMEO:
O, she doth teach the torches to burn bright!
It seems she hangs upon the cheek of night
Like a rich jewel in an Ethiope's ear;
Beauty too rich for use, for earth too dear!

Temperature 1.5:

ROMEO:
By my head, here come the Capulets strange matter!
O serpent heart, hid with a flowering face!
Did ever dragon keep so fair a cave?
Beautiful tyrant! fiend angelical!

What It Learned

• Iambic pentameter rhythm
• Character voices and names
• Dramatic sentence structure
• Shakespearean vocabulary

All from next-token prediction on ~1MB of text!

Summary and Resources

What We Built

1. Embeddings: Token IDs → vectors
2. Attention: Let positions communicate
3. MLP: Process each position
4. Residuals + LayerNorm: Enable depth
5. Training: Cross-entropy, AdamW, cosine schedule
6. Generation: Autoregressive sampling

GitHub Repository

github.com/prathyusha1231/gpt2-shakespeare

Contents:

• Complete model code (~500 lines)
• Training script
• Tests matching HuggingFace
• Documentation for each component

Resources

• Andrej Karpathy's build-nanogpt
• Attention Is All You Need (Original Transformer paper)
• GPT-2 Paper

Closing Thought

The architecture is simple. That's what makes it powerful: the same structure scales from 124M to hundreds of billions of parameters. The elegance is in the simplicity: tokenize, embed, attend, project, sample, repeat.
